CABLE

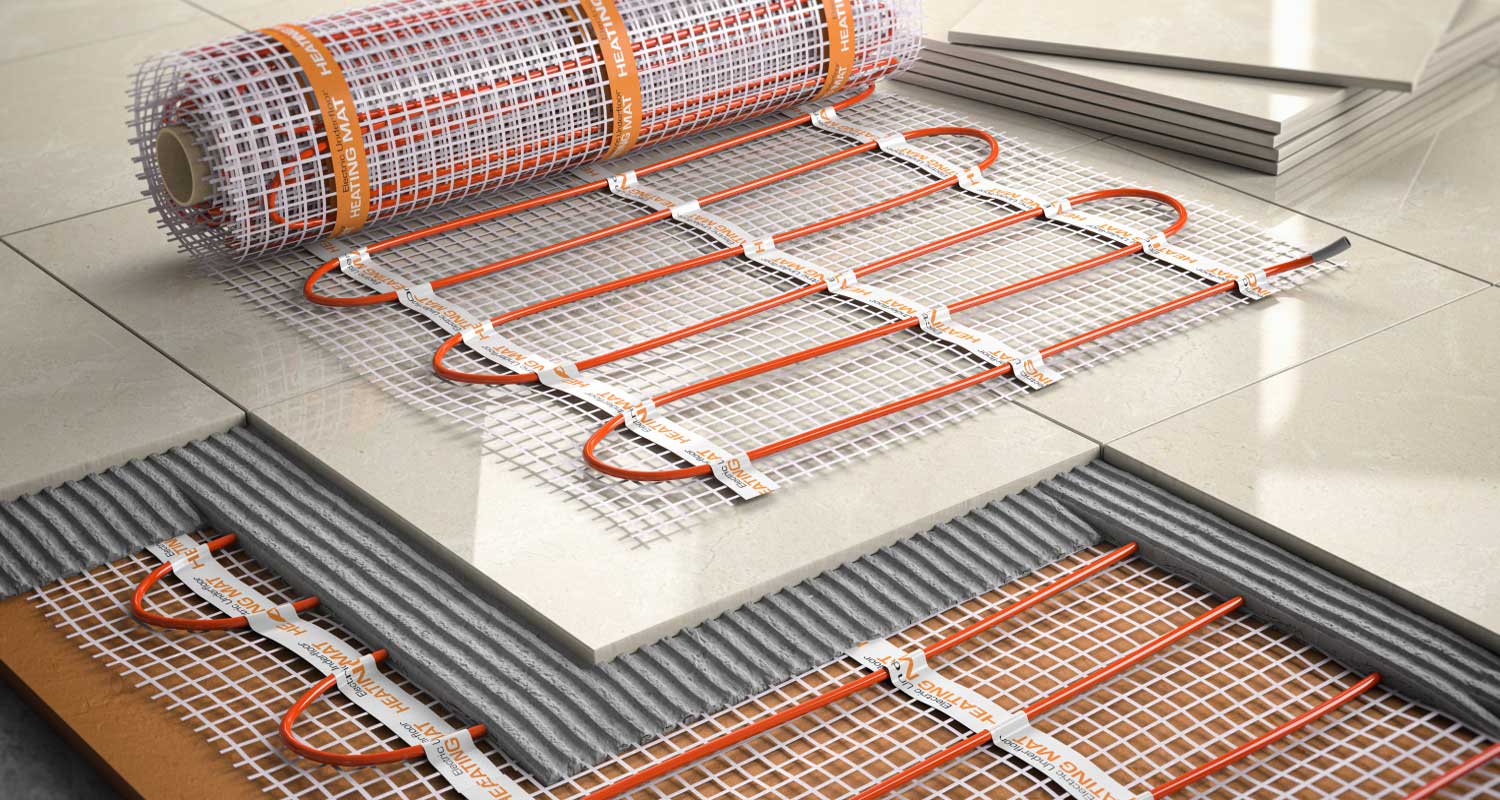

Devex Systems offers four types of electric underfloor heating systems: in-screed, in-slab, under timber or embedded in tile adhesive. The Cable is designed to be used either in-screed, in-slab or under timber. CABLE INSTALLATION – IN SLAB VS IN SCREED The Cable is used in two storage heating options installations: In Slab or In Screed. In slab storage heating is suitable for one room or the whole house and provides economical warmth. It can be installed under just about any floor covering available including carpet, timber, tiles, stone as well as polished and tinted concrete floors. In screed demand heating can be installed under most floor coverings including carpet, timber, tiles and stone. However, cables need to be embedded into- 20-25mm thick sand and cement screed bed.
CK 17 IN-SCREED HEATING
- For use under a wide range of floor coverings Twin conducting Use on structural slab, fibre cement sheet or F-Board insulation Rated 17 watts per meter Output power based on 230 volts Maximum operating temperature of +70°C Comes with a single 3m cold tail Suited to a flat rate or “Time of Use” Complies with IEC 60800:2009 20 year warranty

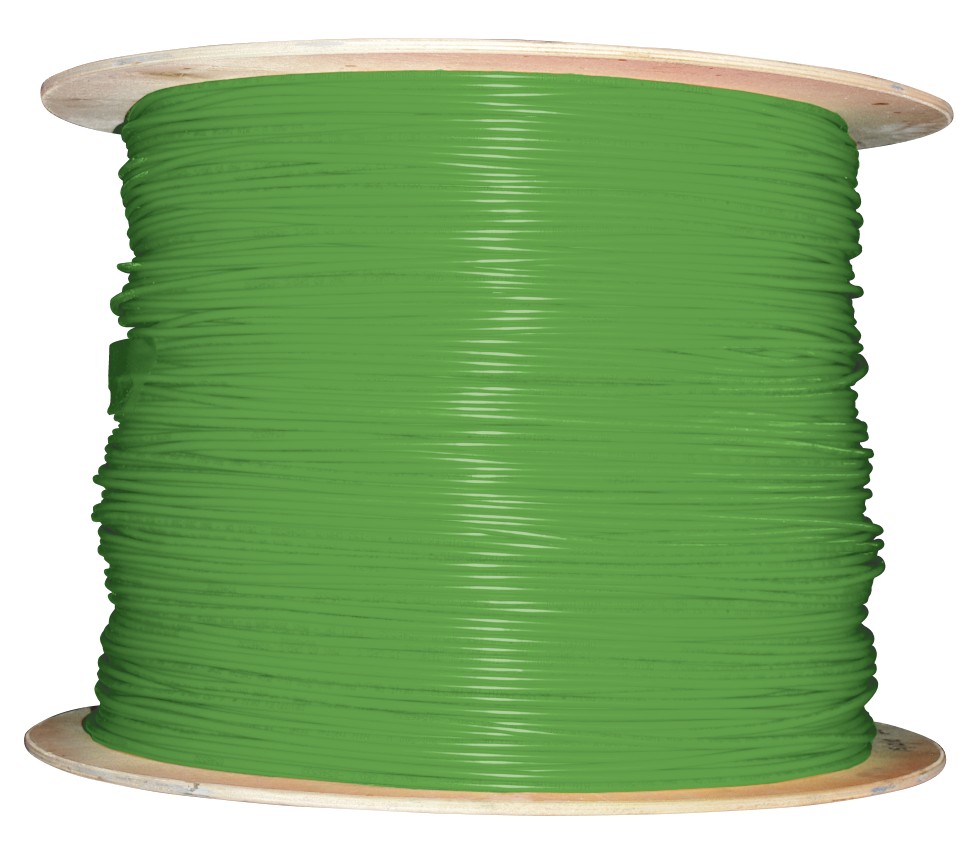

CF BULK
- For use in-screed and frost heaving Single conductor Rated 20 watts per meter Cut to length and terminated Maximum operating temperature of +70°C Suited to a flat rate or “Time of Use” Complies with IEC 60800:2009 20 year warranty
