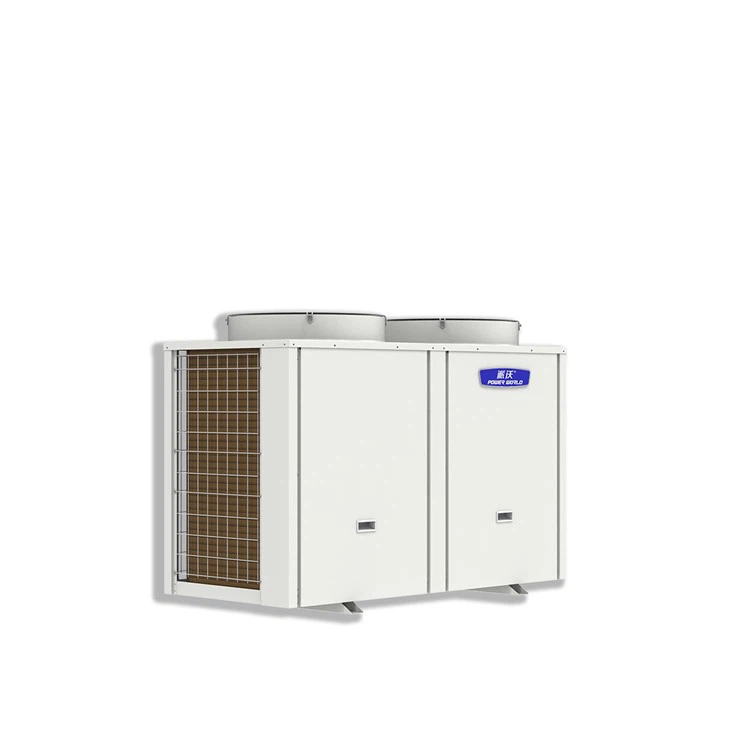

Commercial Air Source Heat Pump

Product Introduction

Products Features

____________________________________________________________________________________________________________________________________________________________________________________________

Function: heating and cooling The ultra-low temperature heat pump unit has a very wide application range and can operate stably at an outdoor temperature of -25? to 43? degrees Celsius. The ultra-low temperature heat pump adopts advanced energy-adjustable control technology to control the number of compressors in the system modules and unit modules, so as to output energy according to actual needs. Intelligent defrosting technology to reduce heating attenuation: The unit can accurately judge the timing of defrosting according to the main parameters of heating operation and load changes, so as to achieve defrosting with frost and normal heating without frost. Forced manual defrost. Multiple protection functions to ensure the safe operation of the system.

Ultra-Low Temperature Heat Pump Applications

____________________________________________________________________________________________________________________________________________________________________________________________

Hotels, shopping malls, office buildings, exhibition halls, airports, gymnasiums, and other public places, and can meet the different requirements for the use of air-conditioning systems in industries such as electronics, pharmaceuticals, biology, textiles, chemicals, metallurgy, electric power, and machinery.

Specification

____________________________________________________________________________________________________________________________________________________________________________________________

Product model		PW070-DKFLRS	PW100-DKFLRS	PW150-DKFLRS	PW250-DKFLRS	PW300-DKFLRS	PW600-DKFLRS	PW1200-DKFLRS
Rated heating working condition: outdoor ambient DB 7℃/WB 6℃, inlet water temperature 40℃, outlet water temperature 45℃.
Heating	Heating Capacity (kW)	19	32	42	72	88	176	335
	Heating input (kW)	5.3	9.0	12.7	21.1	25.2	50.4	95.9
	Current (A)	9.5	16.1	22.7	37.7	45.0	90.1	171.4
	COP (Coefficient of Performance) (W/W)	3.58	3.56	3.31	3.41	3.49	3.49	3.49
Nominal heating working condition 1: outdoor ambient DB 7℃/WB 6℃, inlet water temperature 30℃, outlet water temperature 35℃.
Heating	Heating Capacity (kW)	18	31	41	72	85	165	320
	Heating input (kW)	4.3	7.3	10.2	17.2	20.5	39.8	76.8
	current (A)	7.7	13.0	18.2	30.7	36.6	71.1	137.3
	COP (Coefficient of Performance) (W/W)	4.19	4.25	4.02	4.19	4.15	4.15	4.17
Nominal heating working condition 2: outdoor ambient DB -12℃/WB -14℃, outlet water temperature 41℃.
Heating	Heating Capacity (kW)	12.8	20.5	29	50.3	60.5	121	223
	Heating input (kW)	5.5	8.4	11.2	21.6	26.1	52.4	92.8
	current (A)	9.9	15.0	20.0	38.6	46.7	93.7	165.9
	COP (Coefficient of Performance) (W/W)	2.32	2.44	2.59	2.33	2.32	2.31	2.40
Rated cooling working condition: outdoor ambient DB 35℃/WB 24℃, inlet water temperature 12℃, outlet water temperature 7℃.
Cooling	Cooling capacity (kW)	17.3	25	36.2	64	75	150	275
	Cooling input power (kW)	6.2	9.2	13.3	22.9	27.3	54.6	98.8
	current (A)	11.1	16.4	23.8	40.9	48.8	97.6	176.6
	EER (W/W)	2.79	2.72	2.72	2.79	2.75	2.75	2.78
Refrigerant		R410A
Power supply		380V 3N～/50Hz
Maximum input power		7.7	13.1	18.4	30.6	36.5	73.1	139.1
Maximum current （A）		13.7	23.3	32.9	54.7	65.3	130.6	248.6
Fuse or circuit breaker (A)		32.0	40.0	50.0	80.0	100.0	160.0	400.0
Wire diameter mm2		4mm2	6mm2	10mm2	16mm2	25mm2	50mm2	100mm2
Working area		-30～45	-30～45	-30～45	-30～45	-30～45	-30～45	-30～45
Water circulation （m³/H）		2.98	4.30	6.23	11.01	12.90	25.80	47.30
Water pressure drop （kPa）		46	46	46	46	46	55	55
Anti-electric shock Rate		Ⅰ
IP Grade (Level of protection)		IPX4
Noise (dB(A))		≦58	≦60	≦62	≦62	≦65	≦69	≦72
Net weight/Gross weight(kg)		175/185	212/220	362/370	560/570	585/595	953/966	1900/1920
Diameter of pipe (mm)		G1"（InnerTooth）	G1-1/2"（IT）	G1-1/2"（IT）	DN65（flange）	DN65（flange）	DN65（flange）	DN100（flange）
Blowing direction		Side blowing	Top blowing	Top blowing	Top blowing	Top blowing	Top blowing	Top blowing
Body size(W*D*H) (mm)		1270×540×1410	1500×750×1070	1500×800×1610	2080×1000×1900	2080×1000×1900	2400×1100×2330	2400×2200×2330
Packing size(W*D*H)（Polywood）		1350×590×1600	1600×850×1270	1600×900×1810	2180×1100×2100	2180×1100×2100	2500×1200×2500	2500×2300×2500
Loading quantity (20GP/40GP/40HQ)		12/24/24	6/12/24	6/1 2/12	4/1 0/10	4/1 0/10	4/ 8/8	36620
Compressor Brand		Invotech	Copeland	Invotech	Copeland	Copeland	Danfoss
Four-way valve		Sanhua
Expansion valve		Sanhua
Remark: Rated heating working condition: outdoor ambient DB 7℃/WB 6℃, inlet water temperature 40℃, outlet water temperature 45℃. Nominal heating working condition 1: outdoor ambient DB 7℃/WB 6℃, inlet water temperature 30℃, outlet water temperature 35℃. Nominal heating working condition 2: outdoor ambient DB -12℃/WB -14℃, outlet water temperature 41℃. Rated cooling working condition: outdoor ambient DB 35℃/WB 24℃, inlet water temperature 12℃, outlet water temperature 7℃. Note: Some products in the continuous optimization of the parameters have changed, please refer to the actual product.
